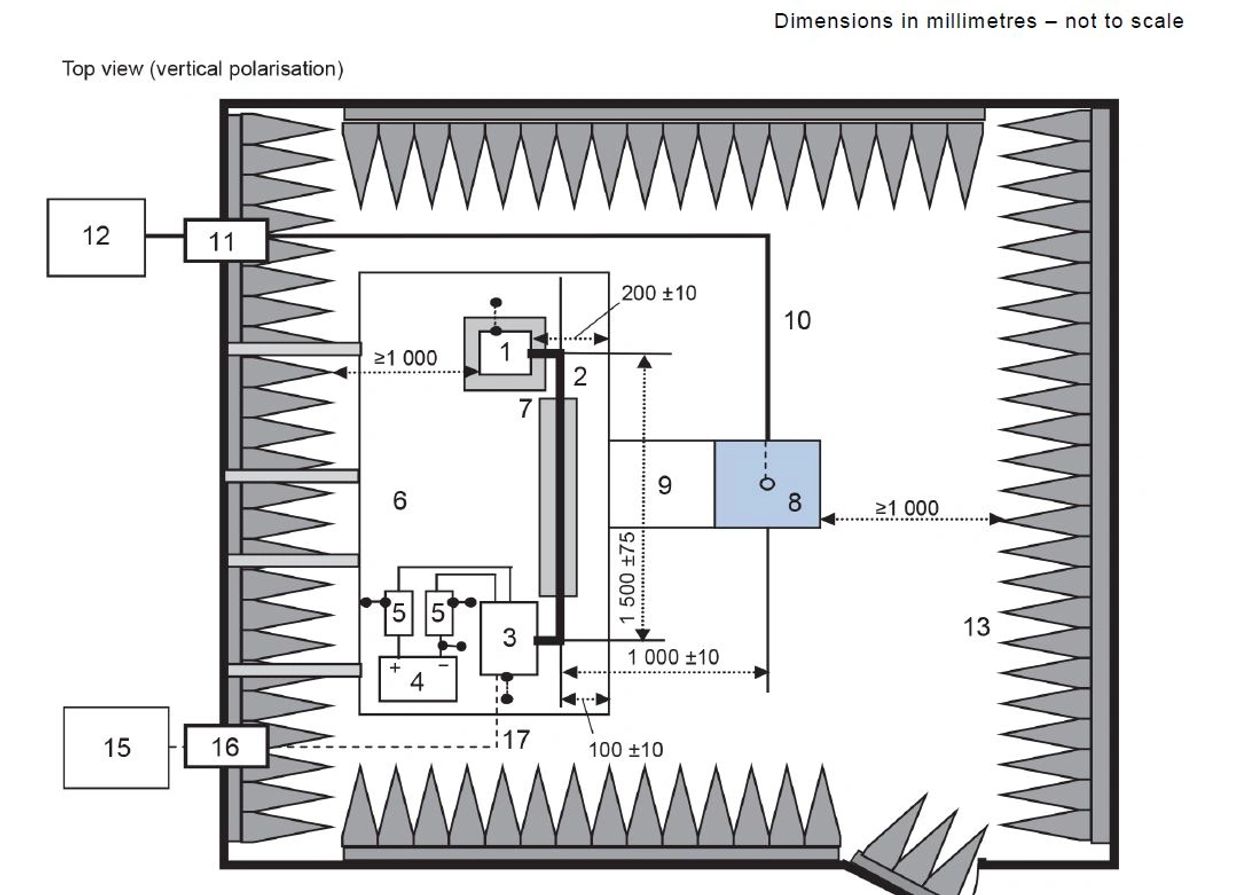

CISPR 25 RADIATED EMISSION ROD ANTENNA
RADIATED EMISSION
Measurements of radiated field strength shall be made in an ALSE to eliminate the high levels of extraneous disturbance from electrical equipment and broadcasting stations.
CISPR 25 RADIATED EMISSION BICONIC ANTENNA
RADIATED EMISSION
Measurements of radiated field strength shall be made in an ALSE to eliminate the high levels of extraneous disturbance from electrical equipment and broadcasting stations.
CISPR 25 RADIATED EMISSION LOG PERIODIC ANTENNA
RADIATED EMISSION
Measurements of radiated field strength shall be made in an ALSE to eliminate the high levels of extraneous disturbance from electrical equipment and broadcasting stations.
CISPR 25 RADIATED EMISSION HORN ANTENNA
RADIATED EMISSION
Measurements of radiated field strength shall be made in an ALSE to eliminate the high levels of extraneous disturbance from electrical equipment and broadcasting stations.
CISPR 25 CONDUCTED EMISSION VOLTAGE
CONDUCTED EMISSION
The test shall be performed in an ALSE or in a shielded enclosure. Voltage measurements are able to characterize the emissions on single leads only.
The conducted emissions on power lines are measured successively on positive power supply and power return by connecting the measuring instrument on the measuring port of the related AN, with the measuring port of the AN in the other supply lines being terminated with a 50 Ω load.
CISPR 25 CONDUCTED EMISSION CURRENT PROBE METHOD
CONDUCTED EMISSION CURRENT PROBE METHOD
The test shall be performed in an ALSE or in a shielded enclosure. Voltage measurements are able to characterize the emissions on single leads only.
The conducted emissions on power lines are measured successively on positive power supply and power return by connecting the measuring instrument on the measuring port of the related AN, with the measuring port of the AN in the other supply lines being terminated with a 50 Ω load.
MAGNETIC FIELD EMISSION
Magnetic Field Emission
To verify that the magnetic field emissions from the EUT and its associated electrical interfaces do not exceed specified requirements.
